Pro-elite Series Advanced Aquarium CO2 Dual Stage Regulator



Our Price: £219.99
Earn 219 Points with this purchase
Description

Pro-Elite Series The Most Advanced Aquarium Dual Stage CO2 Regulator

New Generation of our highest rated dual stage regulator

Every detail has been designed with Aquarium Safety and Fine Precision in mind.
Built for aquariums from 5 liters to 5000 liters!

Dual stage construction minimise increase in output pressure as pressure drops in gas cylinder and will prevent end-tank-dump no matter what size CO2 cylinder you will use.

New fully customised solenoid block with integrated high precision needle valves and bubble counter.

Features :

  • Safe 12V DC Integrated Solenoid Valve
  • Power adapter with universal voltage 100V-240V
  • Adjustable working pressure up to 5 bar
  • Stainless Steel Dual gauge pressure indicators (tank volume and flow pressure / working pressure)
  • High precision integrated needle valve
  • Bubble counter with built-in check valve
  • Extendable manifold block
  • Due to Two Stages construction compatible with any size CO2 Cylinders.
  • The thread is made according to UK, Europe, Japan, Taiwan standard (BS341 / DIN477 / W21.8x14) or CGA320 thread.

Looking to inject CO2 into two, three or more aquariums ?
Your Aquarium is +500L and requires more diffusers ?

Now you can add as many outlets as you like. With easy installation you can add or remove additional blocks anytime you want.

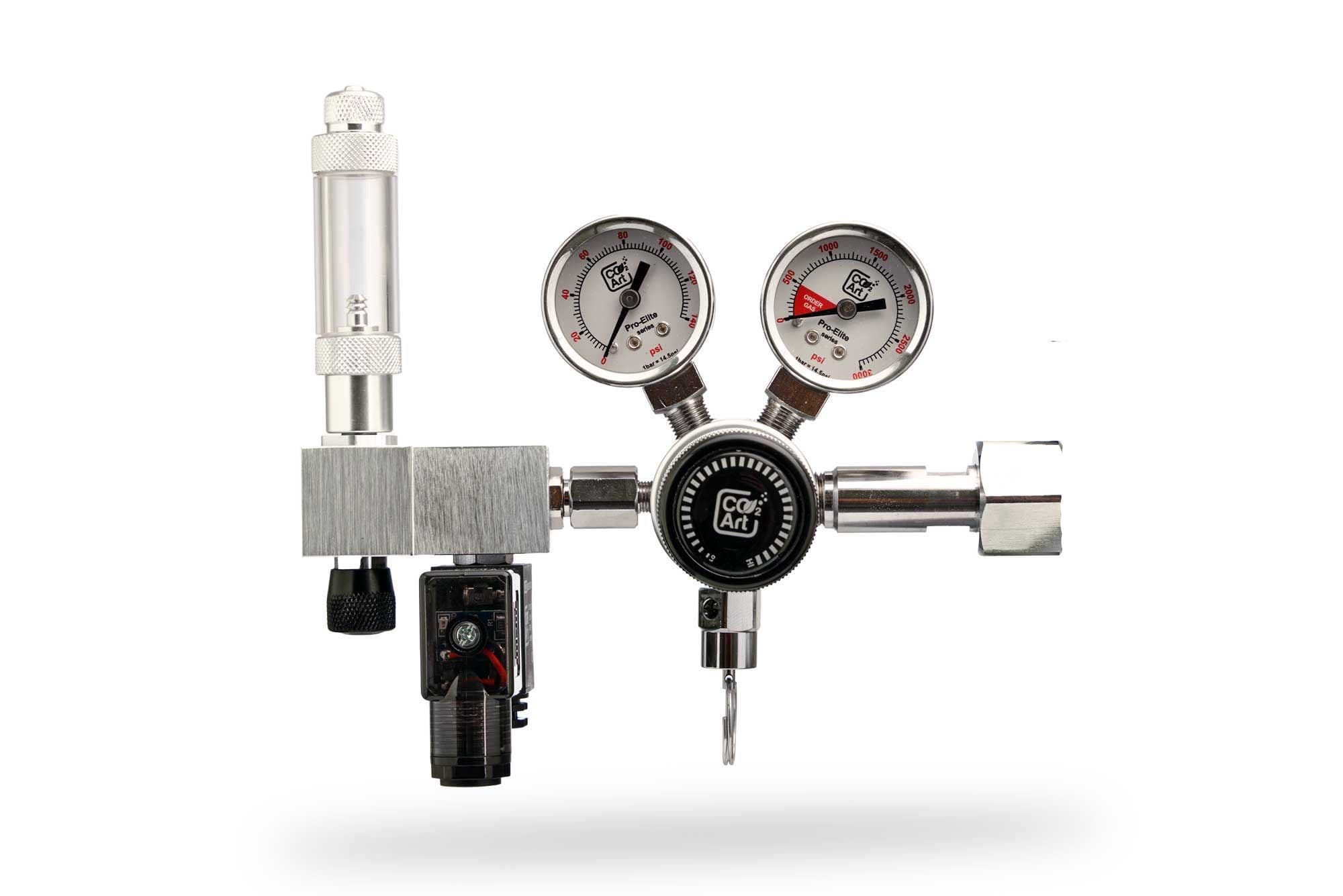

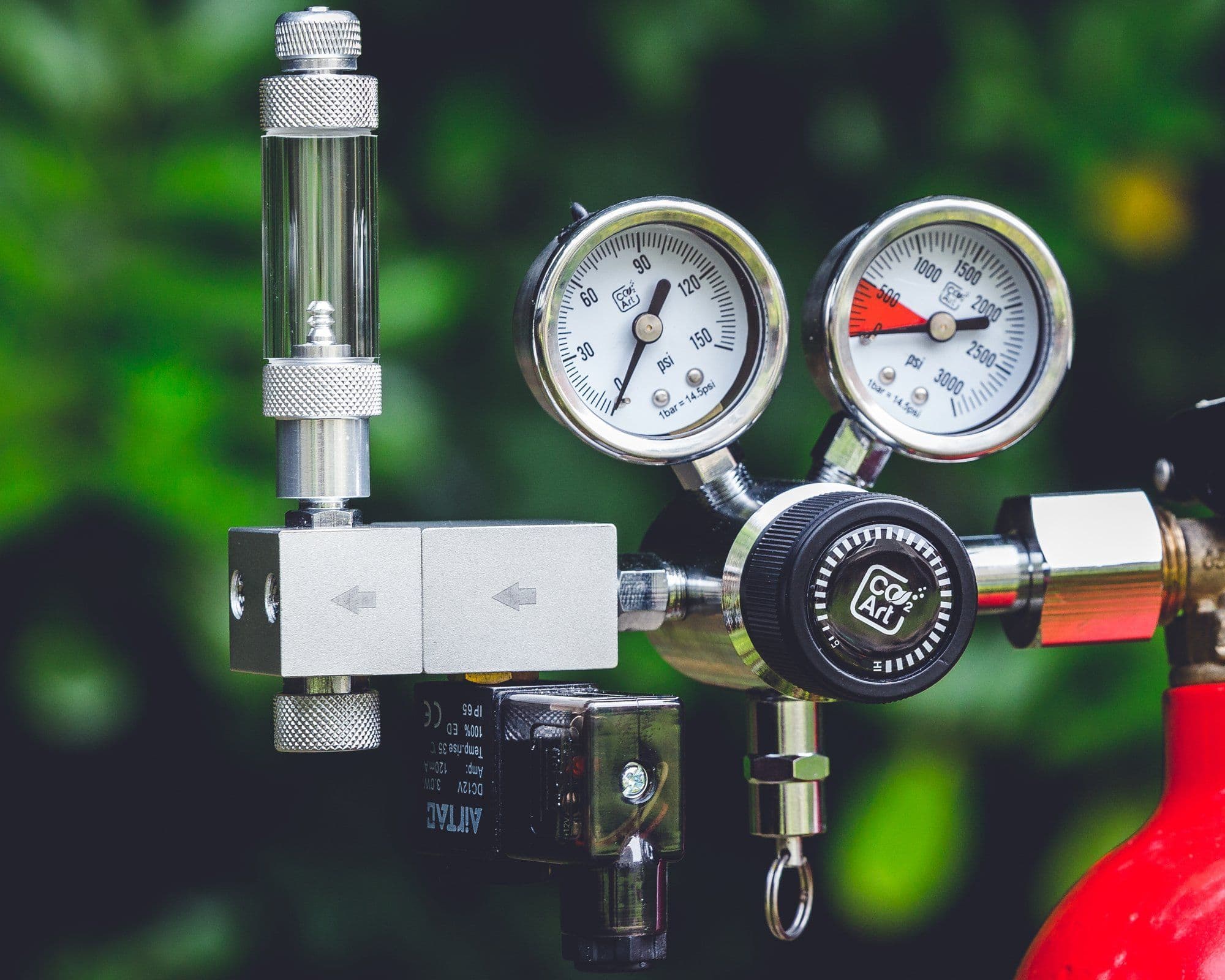

Pro-Elite Series Regulator at a Glance

A - CO2 cylinder connection nut
B - High pressure / CO2 cylinder pressure gauge (displays the amount of CO2 in your cylinder). Please note, for most of the time pressure will be at level of 700-900PSI as CO2 is in liquid state. When gauge will start to drop, that means liquid gas has evaporated and you have from couple hours to couple of days left to change the cylinder (depending on your bubble rate).
C - Low pressure / working pressure gauge
D - Solenoid's valve main block.
E - Bubble counter with integrated check valve
F - Gas flow (bubble rate) adjustment, high precision integrated needle valve
G - Low power 12VDC solenoid's electric coil
H - Safety relief valve. With easy pull down relief ring. To release gas from the regulator, just pull ring down. This is very useful, when dialling working pressure down. Instead of waiting for gas to escape via needle valve, pull down ring for few seconds and gas will escape from the 2nd stage

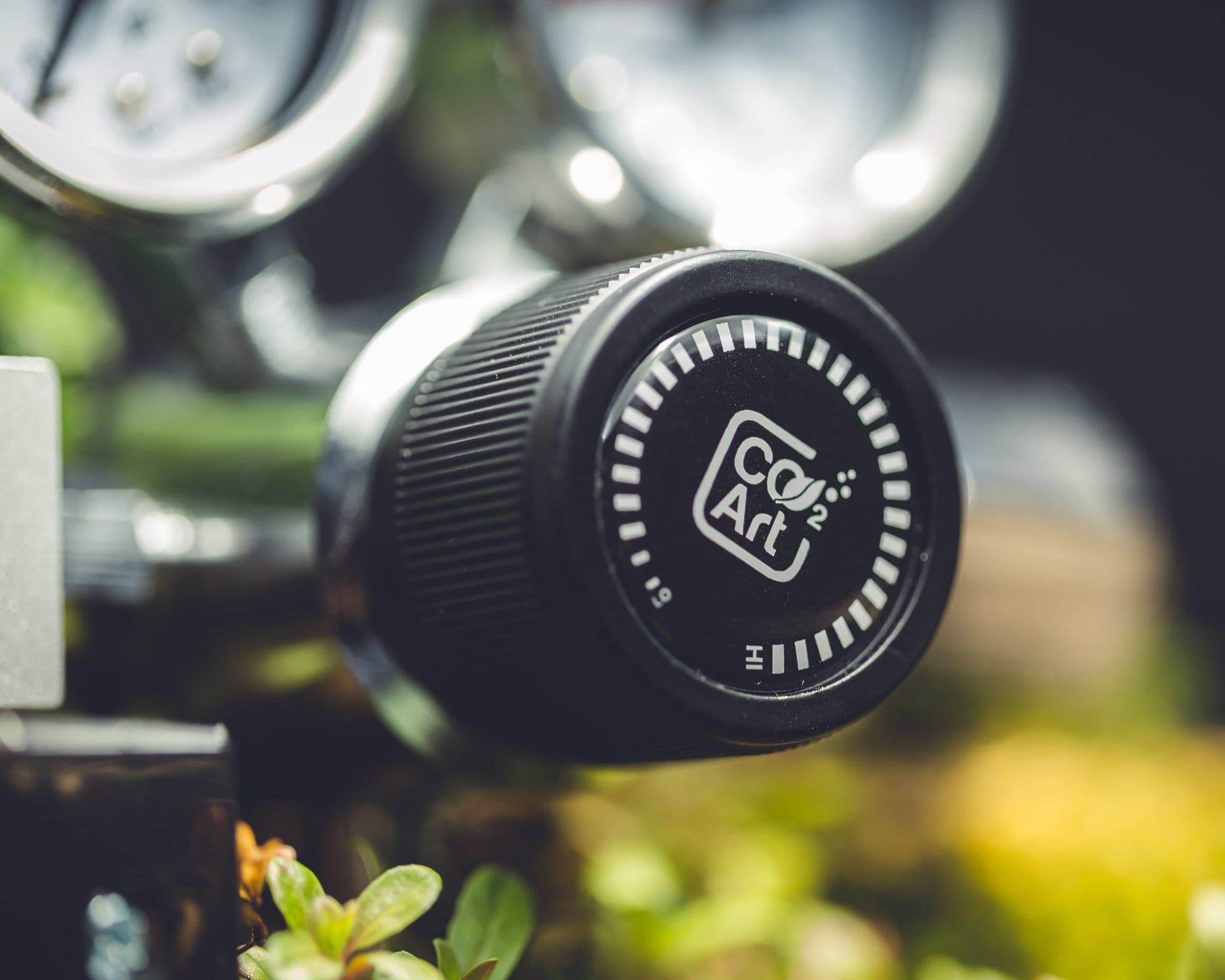

I - Working pressure adjustment knob


Step 1 | Washer Installation

Place washer between CO2 cylinder outlet and regulator's stem (inside regulator's nut)


Step 2 | Tighten the regulator

Tighten the regulator to your CO2 cylinder using a spanner or wrench


Step 3 | Bubble counter installation

A - Remove top cap and fill bubble counter with water*
B - Feed tubing through the collar and install cap back onto the bubble counter

(Detailed bubble counter tutorial)
*We do not recommend mineral oil as it may contaminate your diffuser.


Step 4 | Pressurising the regulator

A - Open main CO2 cylinder valve
B - Adjust working pressure to desire level* by turning front knob clockwise
*Working pressure levels guidance :
  • 10-20PSI - Reactors
  • 20-30PSI - Ceramic and Basic diffusers
  • 30-40PSI - High pressure atomizers (inline & bazooka)
  • 40-60PSI - Multiple outlets with high pressure atomizers (inline & bazooka)


Step 5 | Fine tuning bubble rate

B - Plug the solenoid into a power outlet socket
A - Start turning the needle valve clockwise to achieve the desired bubble rate.
Please allow 5-30seconds for pressure to stabilise between adjustments.
Monitor your bubble rate for the first two days and fine tune to achieve desire flow.
Do not adjust the flow right after solenoid is powered up. Please wait at least 30minutes before further adjustments.
After each regulator installation, follow steps from below video to make sure your system is leak-proof.
